Transfill Hose Assemblies for Filling Standard Oxygen Cylinders
.

We provide custom assemblies for almost all oxygen and commercial gas applications.

If you don't see the hose assembly or adapter you need, please call.
We will gladly provide a quote for any custom filling equipment.
Fittings for International connections are available.

Most assemblies ship within 24 hours.



transfill/ta540to870.jpg

Oxygen Cylinder Transfill Assembly CGA-540 to CGA-870

Allows for filling of CGA-870-valved cylinders from an oxygen storage tank

  • High Pressure Stainless Steel Hose
  • CGA-870 yoke end
  • CGA-540 male nut & nipple end
  • Pressure gauge
  • Rated to 3000 PSI
  • Custom lengths available

2 Ft. CGA-540 to CGA-870 Transfill Assembly with Gauge

Item 2TA-540-870

$215.00
Shipping - $20.00
Within Cont. US

4 Ft. CGA-540 to CGA-870 Transfill Assembly with Gauge

Item 4TA-540-870

$265.00
Shipping - $25.00
Within Cont. US

6 Ft. CGA-540 to CGA-870 Transfill Assembly with Gauge

Item 6TA-540-870

$305.00
Shipping - 30.00
Within Cont. US

transfill/2ftHandTight870.jpg

 Oxygen Cylinder Transfill Assembly CGA-540 Hand Tight to CGA-870

This oxygen transfill hose will allow you to fill standard cylinders from an oxygen storage tank

  • High Pressure Stainless Steel Hose
  • CGA-870 yoke end
  • CGA-540 male nut & nipple end with speed nut hand tight
  • Pressure gauge
  • Rated to 3000 PSI
  • Custom lengths available



2 Ft. CGA-540 Hand Tight to CGA-870 Transfill Assembly  with Gauge

Item 2TA540HT-870

$420.00
Shipping - $25.00
Within Cont. US

4 Ft. CGA-540 Hand Tight to CGA-870 Transfill Assembly  with Gauge

Item 4TA540HT-870

$465.00
Shipping - $30.00
Within Cont. US

transfill/TA540HandTight6ft.jpg

.Oxygen Cylinder Transfill Assembly CGA-540 Hand Tight to 870

CGA-540 Hand tight TO CGA-870 with center of hose controls for operator convenience

Features:

  • This hose assembly fills cylinders with CGA-870 valves.
  • Pressure Release Valve and Gauge are located in center of fill hose for user safety and convenience.
  • All parts are rated at 3000 PSI and are cleaned for oxygen service.
  • Ends are CGA-540 nut and nipple with hand-tight speed nut, and CGA-870 yoke.
  • Pigtail is a high-pressure 3000 PSI braided stainless steel flexible hose.
  • Longer fill hoses are available upon request

Transfill Adapter CGA-540 Hand-tight to 870 - 4 FT.

$480.00

FedEx Ground Shipping - $35.00

Within Cont. US

Transfill Adapter CGA-540 Hand Tight to 870 - 6 FT.

$525.00

Shipping - $35.00
Within Cont. US

transfill/ta540to540.jpg

Oxygen Cylinder Transfill Assembly - 2 Ft. CGA-540 to CGA-540 with Gauge

This oxygen transfill hose will allow you to fill standard cylinders from an oxygen storage tank

  • 2 Ft. Stainless steel hose
  • CGA-540 male nut & nipple ends
  • Pressure gauge (no pressure release valve)
  • Rated to 3000 PSI

2 Ft. CGA-540 Standard Fill Adapter with Gauge
$185.00

Shipping - $20.00
Within Cont. US

4 Ft. CGA-540 Standard Fill Adapter with Gauge
$185.00

Shipping - $20.00
Within Cont. US

transfill/540PRV.jpg

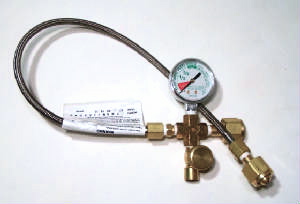

Oxygen Cylinder Transfill Assembly CGA-540 to 540 with Pressure Release Valve

This oxygen transfill hose will allow you to fill standard cylinders from an oxygen storage tank

    Features:

  •        All parts are rated to 3000 PSI and cleaned for oxygen service
  •         Pressure release valve & pressure gauge
  •         Pigtail is a 2 ft. high-pressure braided stainless steel flexible hose*
  •         Fits portable cylinders with CGA-540 valves
  •         Custom lengths available.*



2 Ft. Transfill Assembly CGA-540 to 540 with Gauge & Pressure Release

Item 2TA-540-PRV

$255.00
Shipping - $20.00

Within the Continental US

4 Ft. Transfill Assembly CGA-540 to 540 with Gauge & Pressure Release

Item 4TA-540-PRV

$295.00

Shipping - $25.00 Within the Continental US

6 Ft. Transfill Assembly CGA-540 to 540 with Gauge & Pressure Release

Item 6TA-540-PRV

$345.00

Shipping - $30.00 Within the Continental US

transfill/TA540-540HandTights.jpg

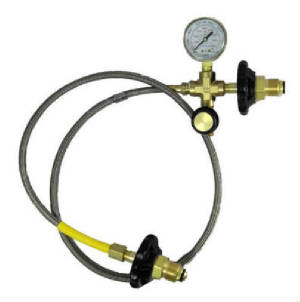

Oxygen Cylinder Transfill Assembly CGA-540 to 540 with Hand-tights

.CGA-540 TO CGA-540 with Hand-tight Speed Nuts and Pressure Release Valve for user safety and convenience.

Features:

  • This adapter features pressure release valve, pressure gauge, hand tight speed nuts.
  • All parts are rated at 3000 PSI and are cleaned for oxygen service.
  • Ends are CGA-540 nut and nipple with hand-tight speed nuts.
  • Pigtail is a high-pressure braided stainless steel flexible hose.
  • Longer stainless steel hoses are available upon request.

Transfill Assembly CGA-540 to 540 w/Hand-tights - 4 ft.

$480.00

FedEx Ground Shipping - $35.00
Within Cont. US

Transfill Assembly CGA-540 to 540 w/Hand Tight - 6 ft.

$510.00

FedEx Ground Shipping - $35.00
Within Cont. US

transfill/ta540to870yoke.JPG

Standard Cylinder Transfill Assembly CGA-540 to 540 w/CGA-870 Yoke Accessory

This oxygen transfill assembly will allow you to fill standard cylinders from an oxygen storage tank

  • High Pressure Stainless Steel Hose
  • CGA-870 yoke accessory
  • CGA-540 male nut & nipple ends
  • Pressure gauge
  • Rated to 3000 PSI
  • Custom lengths available

2 Ft. CGA-540 Standard Fill Adapter with Yoke Accessory

$215.00

Shipping - $15.00
Within Cont. US

4 Ft. CGA-540 Fill Adapter with CGA-870 Yoke Accessory
$255.00

Shipping - $20.00
Within Cont. US

transfill/540to540taPigtail.JPG

Oxygen Cylinder Transfill Pigtail CGA-540 to 540

  • High-pressure Stainless Steel Hose
  • Custom lengths available
  • Brass fittings cleaned for oxygen service
  • Tested and approved to 3000 PSI

2 Ft. CGA-540 Pigtail Hose Assembly
$90.00

Shipping - $15.00
Within Cont. US

4 Ft. CGA-540 Pigtail Hose Assembly
$135.00
Shipping - $15.00
Within Cont. US

6 Ft. CGA-540 Pigtail Hose Assembly

$180.00
Shipping - $20.00
Within Cont. US

transfill/YokeAdapter870.jpg

CGA-870 to 540 Yoke Adapter

This oxygen adapter will provide a CGA-540 threaded connection for a CGA-870 valve for oxygen filling.

Chrome plated brass.  Rated to 3000 PSI

$65.00
Shipping - $10.00
Within Cont. US

transfill/yokeadapter1qtrNPT.JPG

CGA-870 to 1/4 NPT Yoke Adapter

This oxygen adapter will provide a 1/4 NPT threaded connection for a CGA-870 valve for oxygen filling.

Chrome plated brass.  Rated to 3000 PSI

$65.00
Shipping - $10.00
Within Cont. US

transfill/TA540to870wCylinders.jpg

 Portable Oxygen Cylinder Filling Station (60 Cu.Ft. Tank with Adapter)

Use this lightweight 60 Cu.Ft. cylinder with transfill adapter to conveniently fill smaller portable oxygen cylinders.

  • 60 Cu.Ft. aluminum cylinder with standard CGA-540 valve with handle.
  • Cylinder specs: 1699 liters,  24 lbs., 7.25" diam., 27" tall, 2216 PSI or 153 bar, delivered empty
  • 2 ft. high-pressure braided stainless steel flexible hose.  (Longer hoses available)
  • 1/4" NPT CGA-540 connection end, and standard CGA-870 yoke style connection end.
  • Adapter may be provided with 1/4" NPT CGA-540 ends + GA-870 yoke adapter.
  • All parts new and cleaned for oxygen service, rated to 3000 PSI.

SMALLER TANK IS SHOWN FOR ILLUSTRATIVE PURPOSES AND IS NOT INCLUDED WITH SYSTEM.

$550.00
Shipping - $45.00
Within Cont. US

transfill/TA540to870wCylinders.jpg

 Portable Oxygen Cylinder Filling Station (90 Cu.Ft. Tank with Adapter)

Use this lightweight 90 Cu.Ft. cylinder with transfill adapter to conveniently fill smaller portable oxygen cylinders.

  • 90 Cu.Ft. aluminum cylinder with standard CGA-540 valve with handle.
  • Cylinder specs: 2550 liters,  34 lbs., 7.25" diam., 36" tall, 2216 PSI or 153 bar, delivered empty
  • 2 ft. high-pressure braided stainless steel flexible hose.  (Longer hoses available)
  • 1/4" NPT CGA-540 connection end, and standard CGA-870 yoke style connection end.
  • Adapter may be provided with 1/4" NPT CGA-540 ends + GA-870 yoke adapter.
  • All parts new and cleaned for oxygen service, rated to 3000 PSI.

SMALLER TANK IS SHOWN FOR ILLUSTRATIVE PURPOSES AND IS NOT INCLUDED WITH SYSTEM.

$595.00
Shipping - $55.00
Within Cont. US
